产品详情
HiCC-B1型Ai智能全自动菌落计数仪
一、用途

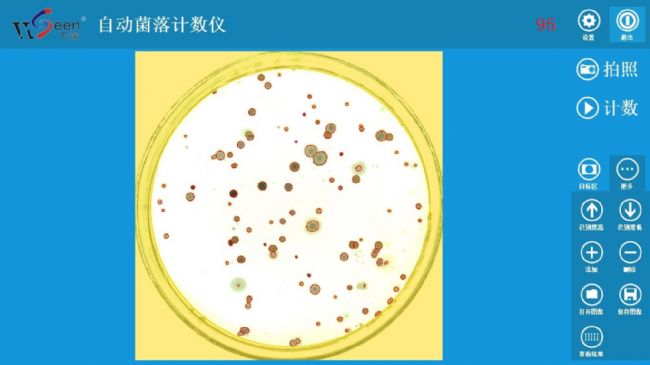

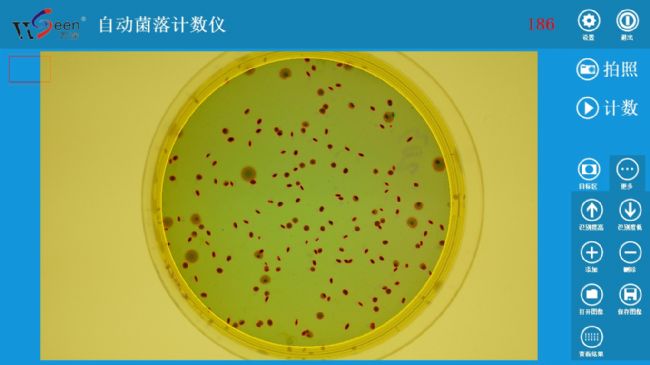

用于微生物、菌落总数的自动计数分析，快速、有效替代半自动计数菌落的落后工作方式。
二、主要技术指标
1、★配自动对焦的大景深800万像素（3264x2448像素）彩色拍摄主机，具有微距拍摄特性。全封闭暗箱以消除环境杂散光干扰。任意调柔性无影光的上光源，下光源、上下双光源，5W大功率的275nm+395nm双波长紫外光照明（用于腔体消毒、紫外诱变），可自由组合和任意独立切换，以构成清晰的悬浮暗视野菌落成像效果，突显出菌落形态，获得最佳菌落成像，实现傻瓜式智能识别计数。
2、适应培养皿：50～130mm（倾注、膜滤、3M纸片）。

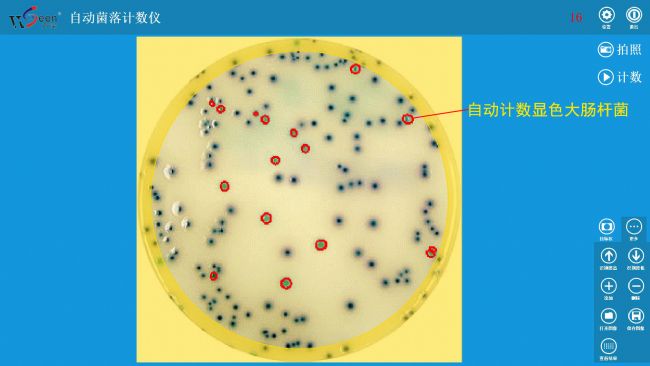

3、★对无蔓延菌落生长、菌落数300CFU以内的平板，一键拍照Ai智能自动计数精度≥98%（对标准菌株的计数精度达99.3%以上），极少修正即达100%正确。分析速度：50～500个菌落/s（计数分析耗时1～4秒）。对显色培养基培养出来的大肠杆菌群也能有效自动计数。可自动识别计数≥0.1mm的菌落。
4、自动分割链状或团状粘连的各类菌落，符合菌落总数计数国标要求。
5、自动剔除杂质，触屏缩放图像和点击修正等前卫操作，有效支持复杂微生物统计。
6、可存上万张图片及其对应的数据，并无线上网来远程发送图片、结果数据。
三、标准配置
1、HiCC-B1型Ai智能全自动菌落计数仪软件U盘及软件锁1套
2、自动对焦的大景深800万像素彩色拍摄主机1台
3、品牌电脑（14代酷睿i5 CPU / 16G内存/ 23.5”彩显/无线网卡，1个USB3.0+1个USB2.0口，运行环境Windows 10或11完整专业版）1台
备注：
本技术标书中打★款项必须响应，否则为重大偏离
WSeen’s HiCC-B1 automatic colony counter
Overview:
WSeen’s HiCC-B1 automatic colonies counter for the PC, automatic colony counting software, backlight imaging device. Mainly used for micro-organisms, the total count of the automatic count analysis, rapid and effective alternative to manual or semi-automatic counting of colony lagging work.
Features:
1, by a PC, the software will automatically count and output the number of colonies with Ai support.
2, by adding, deleting the individual pointing correction, can make a few grains up to 100% accuracy.
3, can view the results table, export to EXCEL, and to the designated recipient to upload data.
4, highlight LED backlight device to colony count recognition more stable, can work long hours.
5, Windows system environment, user-friendly, concise, intelligent.
Technical Parameters:
1, with a color 800 megapixel autofocus camera, the highest resolution of 0.05mm, can identify as small as 0.1mm colony
2, suspended dark field of vision, the backlight can be switched imaging analysis of ultra-thin imaging device
3, to adapt Petri dishes diameter: 50 ~140mm plate (pouring, membrane filtration, 3M paper)
4, automatic segmentation of chain or lumps of various types of colonies adhesion
5, automatic counting accuracy ≥ 98%, with very few amendments up to 100% correct. Analysis speed: 50 - 300 colonies / s
5, automatic removal of impurities, click on the touch screen correction, effective support for complex microbiological statistics
6, can save tens of thousands of pictures and their corresponding data, and wireless Internet to send pictures remotely, the result data
Availability list:
a LED imaging device with 800 megapixel color camera and a power adapter (for AC220V), a software lock (under windows 10 Professional edition) and a software U disk, a dark field of a black film
其具有全英文版，已多批次出口国外并有效使用。
注：本技术标书中打★款项必须响应，否则为重大偏离
应用万深系列考种仪、植物图像分析仪器在国内外高端学术刊物上发表的部分学术论文已逾1306篇：http://www.wseen.com/News.aspx?id=6
有老师用万深系统来高效率实验，在Nature上发表的论文影响因子（IMF）有40多（Huang, X. et al. Genomic analysis of hybrid rice varieties reveals numerous superior alleles that contribute to heterosis. Nat. Commun. 6:6258 doi: 10.1038/ncomms7258 (2015).）。
